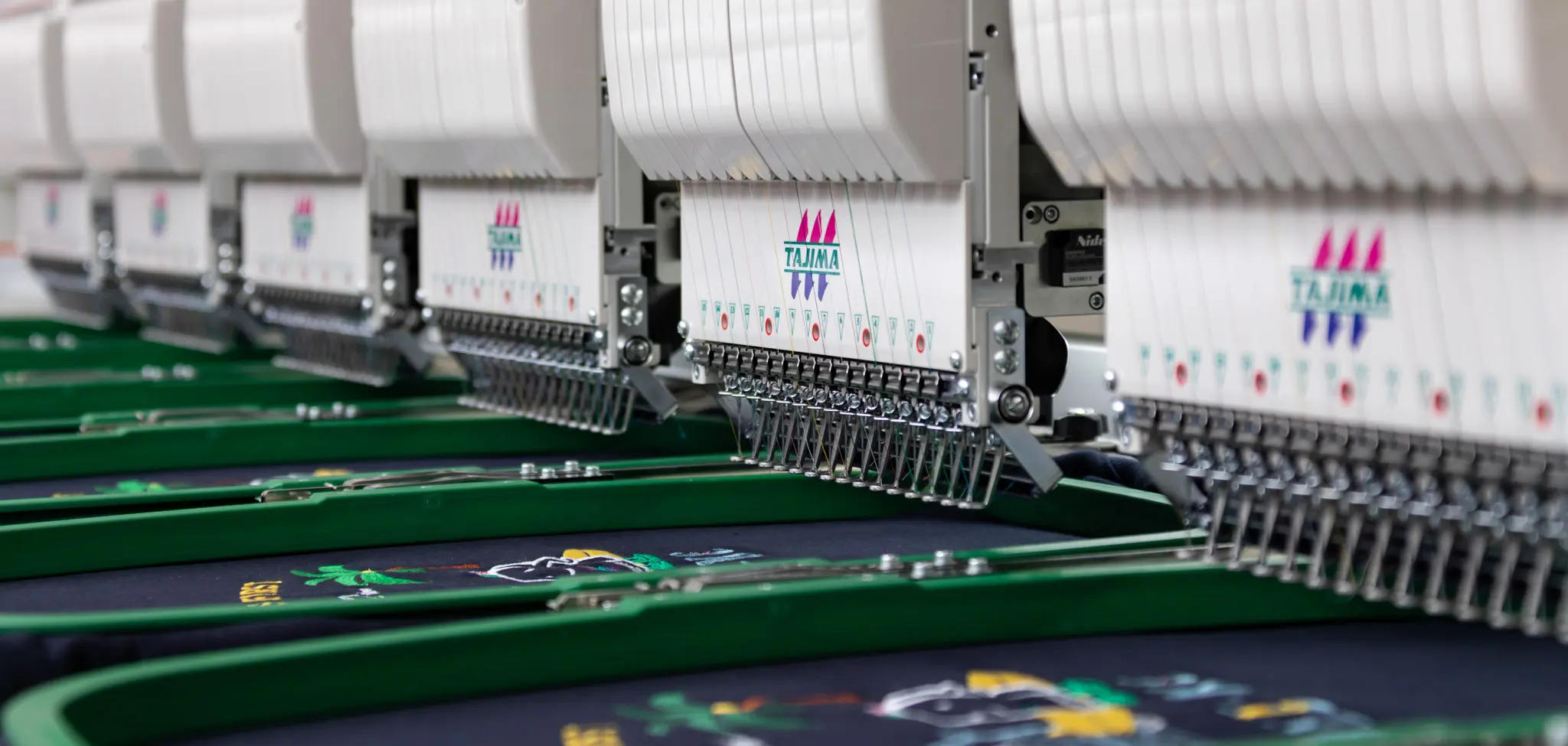

Flagship multi-head cylinder type model is equipped with Tajima's latest technologies

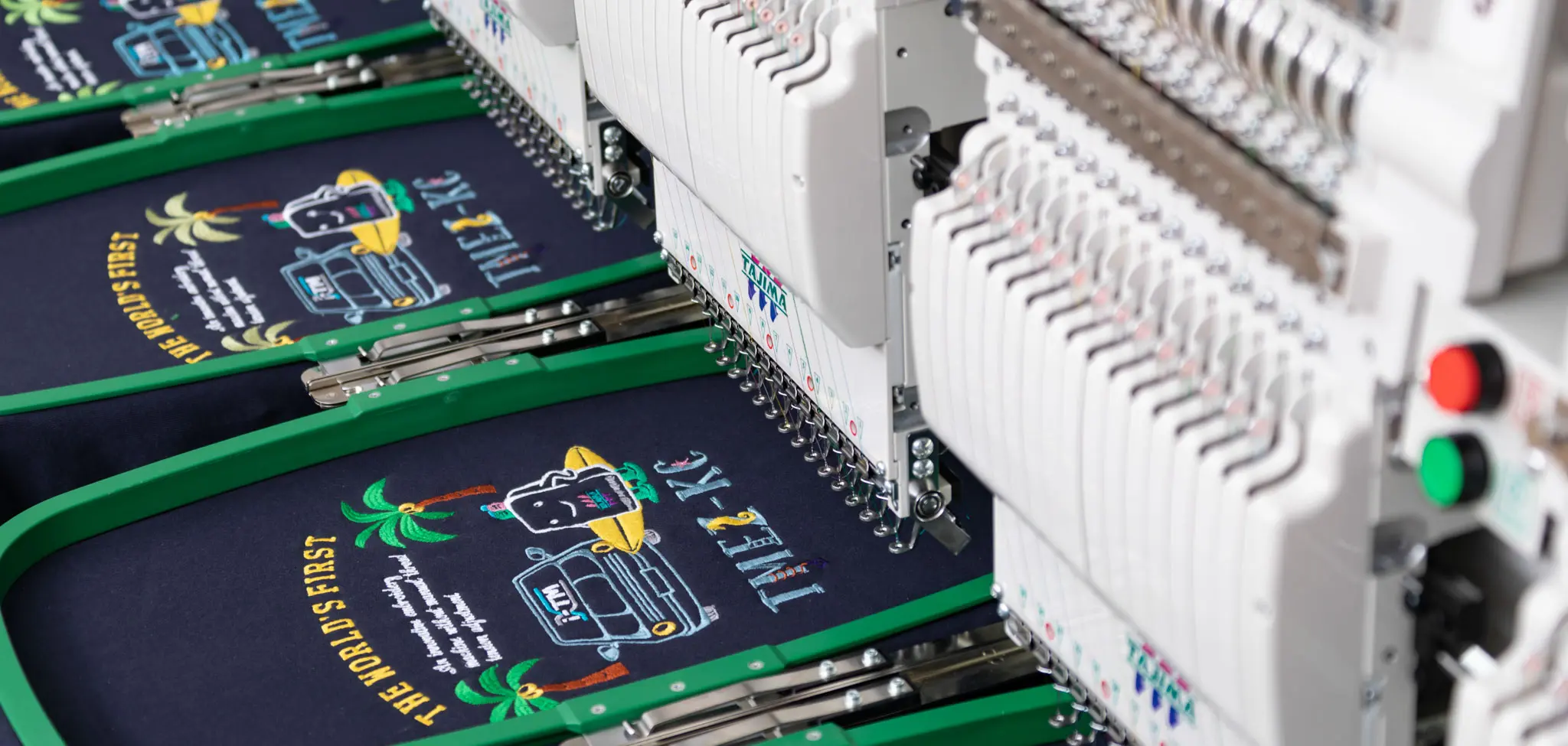

The TMEZ-KC series multi-head cylinder type embroidery machines are equipped with Tajima’s latest and most advanced technologies. It is suited for logo and emblem embroidery on products such as sports uniforms and hats in small to medium quantities. The i-TM and DCP allow even embroidery beginners to work on any material, at high speed and with stable quality.
The need to adjust the upper thread tension according to the stitch, design, or material, as is done by skilled operators on conventional embroidery machines, is no longer necessary.
The reason is that Tajima’s Digitally Controlled Presser foot (DCP) measures fabric thickness with each stitch, and its AI technology, Intelligent Thread Management (i-TM), automatically supplies the right amount of upper thread for different fabric thicknesses and stitches in just 0.05 seconds. In addition, DCP suppresses fluttering and enables stable sewing.
Even if the item to be embroidered or thread type changes frequently, such as an in-store order, the embroidery machine will always provide the best possible stitches without having to change settings.

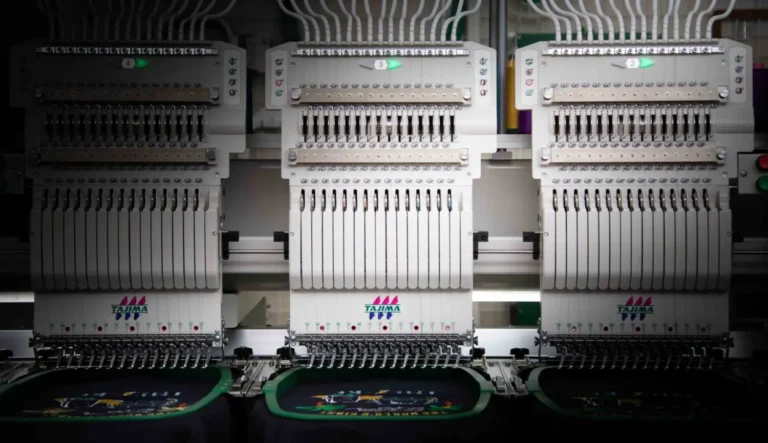

The time required for trial sewing and adjustment can be reduced, and the speed can be increased with less worry of thread breakage, resulting in an estimated 30% reduction in processing time (compared to conventional machines). Less adjustment work allows multiple embroidery machines to be controlled at the same time, increasing production per operator.
The DCP reduces fabric fluttering, resulting in fewer press marks and thread trimming errors, and thus fewer defective pieces. Manual adjustment for delicate fabrics such as velvet and enameled material reduces the risk of fabric press marks.

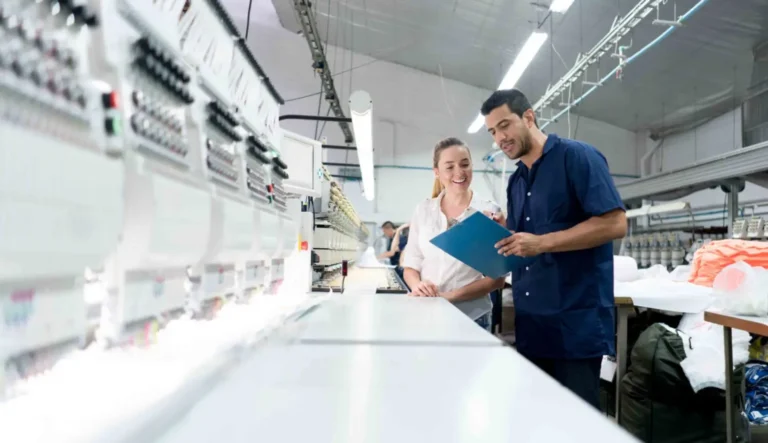

Even in a shift-based factory, where operators are frequently replaced, embroidery can always be performed with consistent quality, regardless of the operator’s skill level. Operators become a competitive force at an early stage because of the small amount of time required to acquire skills.
It is used by leading brands and fashion houses. They yield a beautiful finish, regardless of whether you are using a satin stitch, a running stitch, or a fill stitch. What’s more, a variety of options for sequins and beads enables additional forms of expression. Beautiful and exquisite embroidery with multi-head technology in which all heads are synchronized.
Large-diameter shaft makes it easy for anyone to install the cap frame. Three-point locking between the drive ring and cap frame provides more stable fixation, less needle breakage and pattern misalignment, and operation at a maximum speed of 1,000 rpm.
Three times stronger than traditional embroidery machine arms, they are also more suitable for embroidery on jackets and other heavy items.
The smaller diameter of the cylinder bed and the smaller bobbin cover allows for easy embroidery on tubular finished products such as sleeves and pockets.
In addition to DCP, the machine offers a wide variety of operator-friendly functions and options. This reduces operator workload while ensuring high quality embroidery production and smooth machine operation.

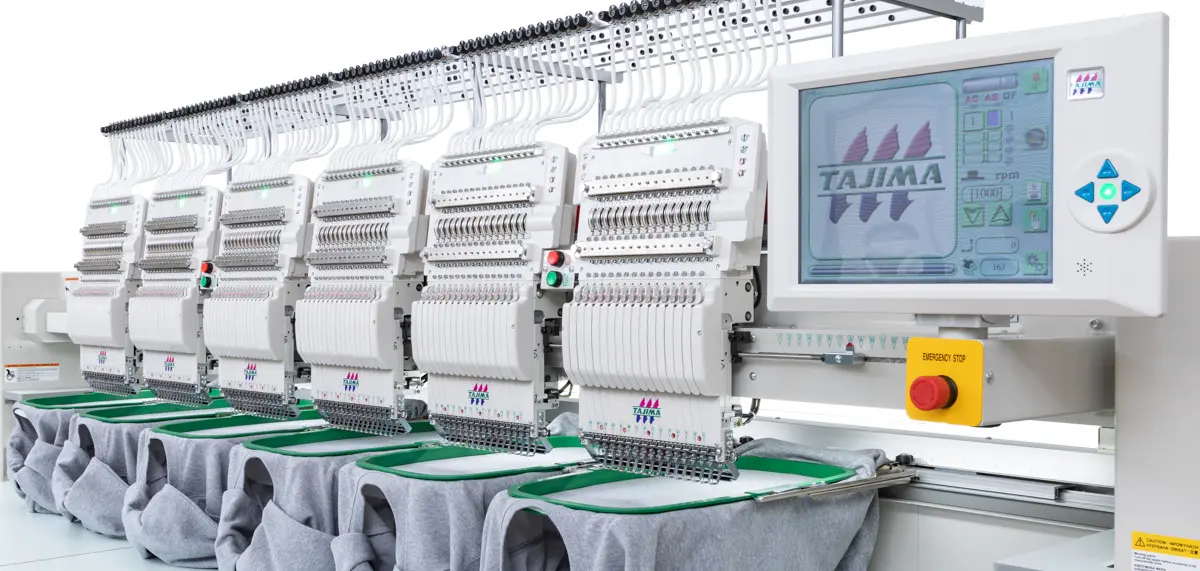

The large 12.1-inch operation panel—one of the largest in the industry—features convenient icons and allows you to switch the language used for operating the machine.
Located on the head, these operation switches provide control of the thread trim and other functions at each tension base for increased production efficiency.
Eliminating the picker makes exchanging bobbins easier. It also provides more stable trimming and a 40% improvement over conventional machines in shortening thread tails on the reverse side of the fabric.
2/4/6/8
Multicolor heads
9/12/15
Needles
360/500㎜
Head interval
1,100rpm
Max Revolution
470w
(730VA)
Power consumption
|
Needles |
Multi |
Head interval |
Embroidery field （D×W） |
Overall Width |
Depth |
Height |
|||
|
Border Frame |
Wide Cap Frame |
Semi-wide |
Tubular Frame |
||||||
|
9/12/15 |
2 |
500 |
450×500 mm |
75×360 mm |
83×180 mm |
439×419 mm |
2,260 mm |
1,355 mm |
1,730 mm |
|
9/12/15 |
4 |
360 |
450×360 mm |
75×360 mm |
83×180 mm |
439×279 mm |
2,560 mm |
1,355 mm |
1,730 mm |
|
9/12/15 |
4 |
500 |
450×500 mm |
75×360 mm |
83×180 mm |
439×419 mm |
3,260 mm |
1,355 mm |
1,740 mm |
|
9/12/15 |
6 |
360 |
450×360 mm |
75×360 mm |
83×180 mm |
439×279 mm |
3,280 mm |
1,355 mm |
1,740 mm |
|
9/12/15 |
6 |
500 |
450×500 mm |
75×360 mm |
83×180 mm |
439×419 mm |
4,260 mm |
1,355 mm |
1,740 mm |
|
9/12/15 |
8 |
360 |
450×360 mm |
75×360 mm |
83×180 mm |
439×279 mm |
4,000 mm |
1,355 mm |
1,740 mm |
|
9/12/15 |
8 |
500 |
450×500 mm |
75×360 mm |
83×180 mm |
439×419 mm |
5,260 mm |
1,355 mm |
1,740 mm |
- Power consumption
- 3-phase 200-220V / 240 / 350 / 380 / 400 / 415 / 440V 50/60Hz
Single-phase 100-120V / 200-240V 50Hz/60Hz
- 3-phase 200-220V / 240 / 350 / 380 / 400 / 415 / 440V 50/60Hz
- Contact us for other specifications and more details.
- The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.
Factory options support a wider variety of embroidery expression and increase production efficiency
Embroidery frame that can be applied to various items
