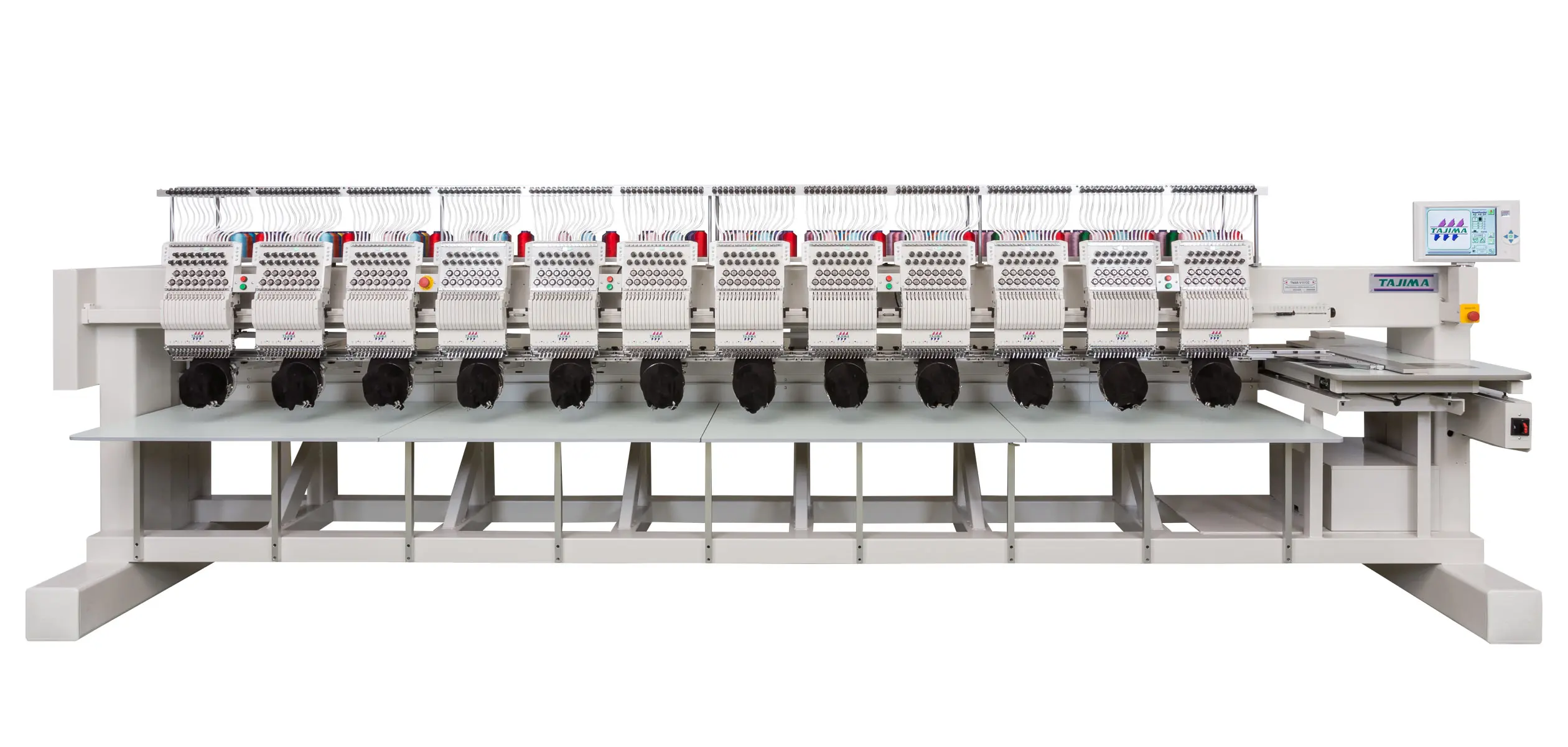

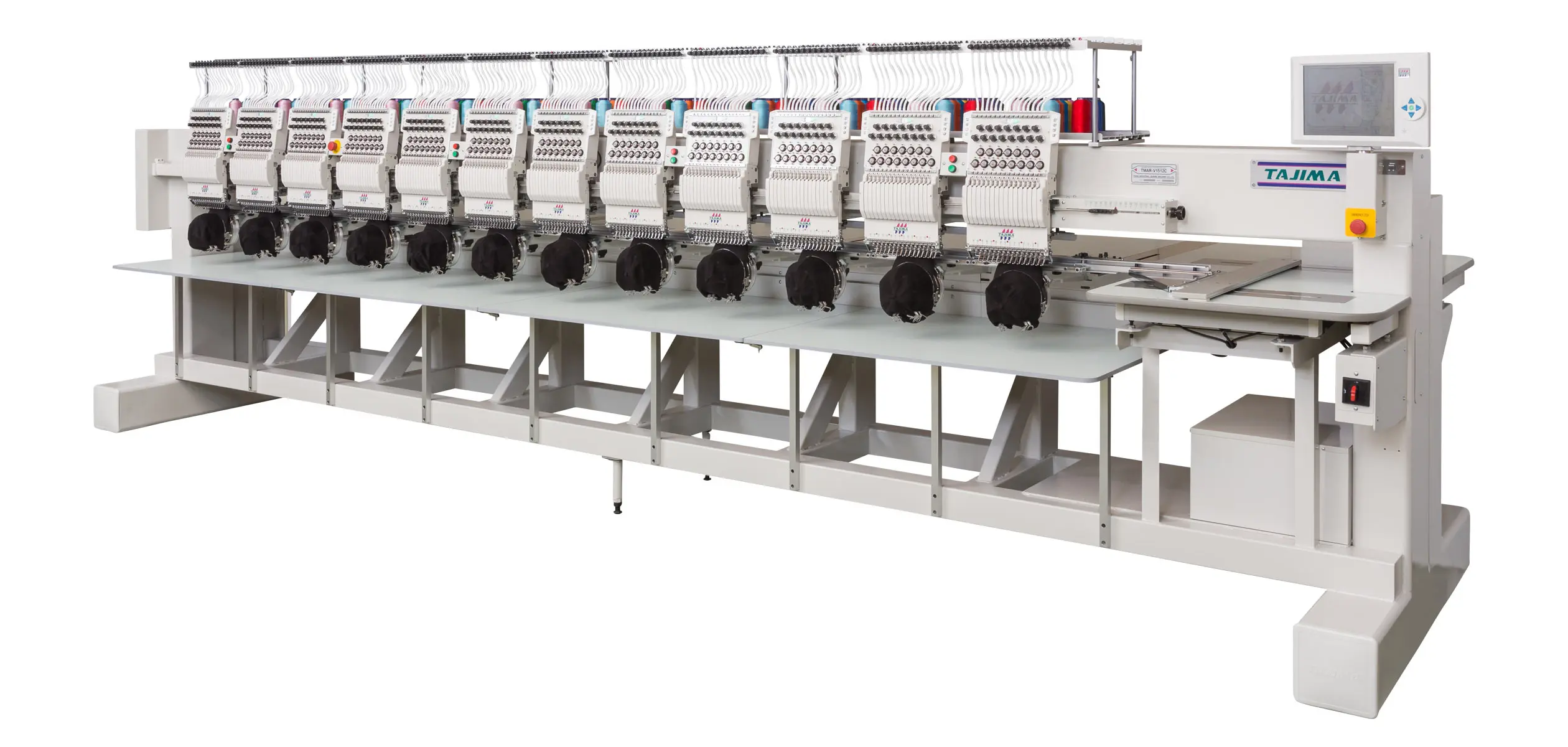

Multi-head cylinder type high-end model (12 heads) enables stable embroidery processing on finished products
The TMAR-VC mid-class high-end cylinder type embroidery machine allows you to add a wide variety of embroidery to finished products, and the DCP provides a precise and beautiful finish, regardless of the material. It is suited for embroidering logos and marks on finished products such as sports uniforms and hats in large quantities. *The TMAR-KC is configured with 2 to 8 heads, the TMAR-VC with 12 heads.
The Digitally Controlled Presser foot (DCP) measures the thickness of the fabric in 0.05 seconds per stitch and presses the fabric with optimal pressing force. Therefore, it instantly adapts to both thick and thin fabrics. Quilted fabrics are sewn with the padding pressed down firmly, while 3D embroidery using urethane is sewn three-dimensionally without pressing down excessively.
It firmly holds fabrics from sheer to knit materials so that they do not flutter regardless of the item. Embroidery is always applied with consistent quality to items of varying thickness and stiffness, such as T-shirts, hats, socks, bags, etc.
The DCP reduces fabric fluttering, resulting in fewer press marks and thread trimming errors, and thus fewer defective pieces. Manual adjustment for delicate fabrics such as velvet and enameled material reduces the risk of fabric press marks.
It is used by leading brands and fashion houses. They yield a beautiful finish, regardless of whether you are using a satin stitch, a running stitch, or a fill stitch. What’s more, a variety of options for sequins and beads enables additional forms of expression. Beautiful and exquisite embroidery with multi-head technology in which all heads are synchronized.

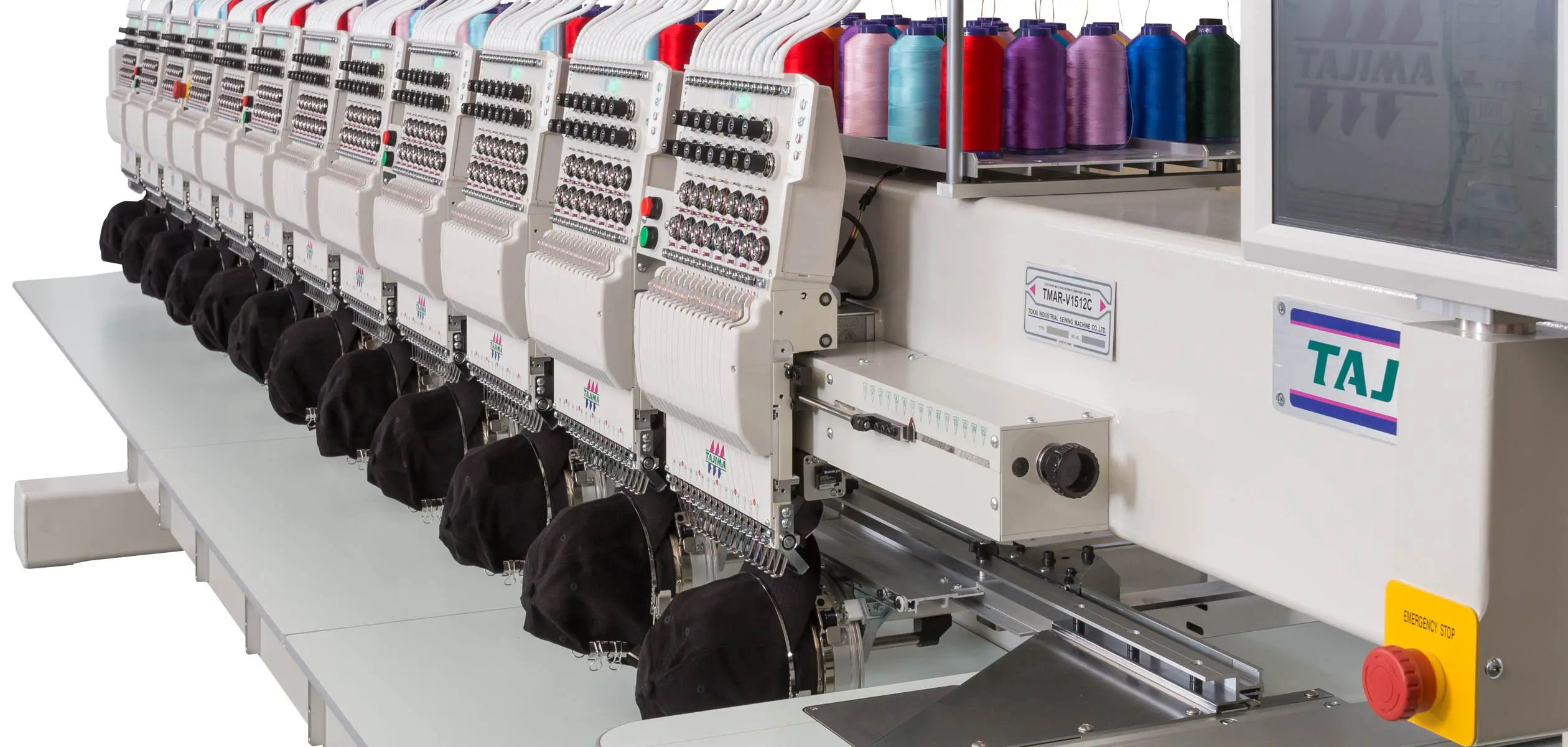

Large-diameter shaft makes it easy for anyone to install the cap frame. Three-point locking between the drive ring and cap frame provides more stable fixation, less needle breakage and pattern misalignment, and operation at a maximum speed of 1,000 rpm.
Three times stronger than traditional embroidery machine arms, they are also more suitable for embroidery on jackets and other heavy items.

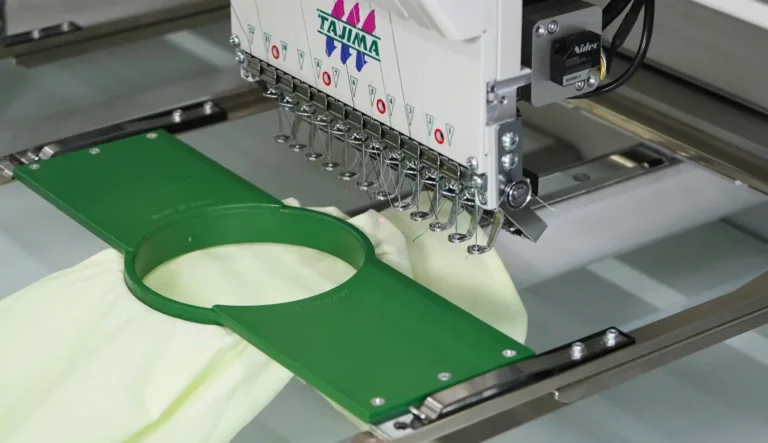

The smaller diameter of the cylinder bed and the smaller bobbin cover allows for easy embroidery on tubular finished products such as sleeves and pockets.
In addition to DCP, the machine offers a wide variety of operator-friendly functions and options. This reduces operator workload while ensuring high quality embroidery production and smooth machine operation.

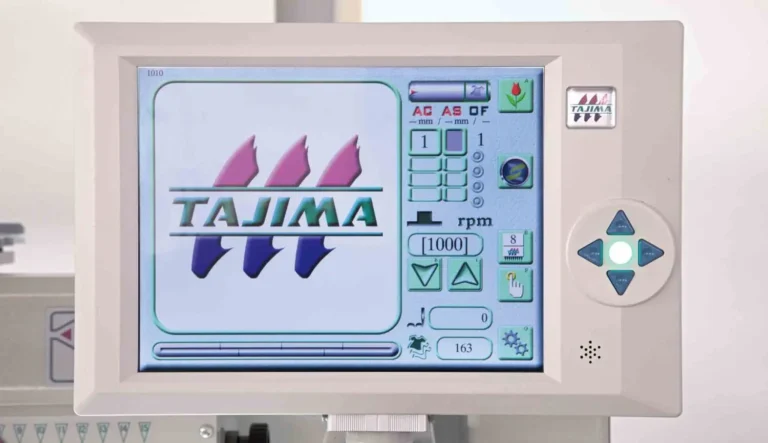

The large 12.1-inch operation panel—one of the largest in the industry—features convenient icons and allows you to switch the language used for operating the machine.

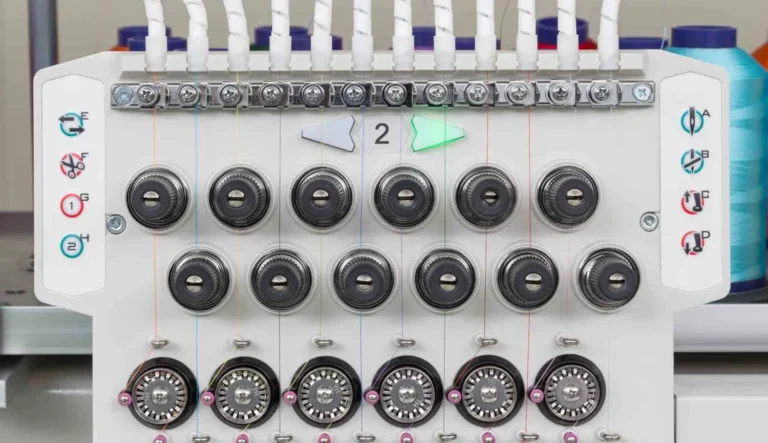

Located on the head, these operation switches provide control of the thread trim and other functions at each tension base for increased production efficiency.
Eliminating the picker makes exchanging bobbins easier. It also provides more stable trimming and a 40% improvement over conventional machines in shortening thread tails on the reverse side of the fabric.
12
Multicolor heads
12/15
Needles
360㎜
Head interval
1,100rpm
Max Revolution
700w
Power consumption
|
Model |
Needles |
Multi |
Head interval |
Embroidery field （D×W） |
Overall Width |
Depth |
Height |
|||
|
Border Frame |
Wide Cap Frame |
Semi-wide |
Tubular Frame |
|||||||
|
Tubular Frame spec. |
12/15 |
12 |
360 |
450×360mm |
75×360mm |
83×180mm |
439×279mm |
5660mm |
1480mm |
1705mm |
|
Border frame spec. |
12/15 |
12 |
360 |
450×360mm |
75×360mm |
83×180mm |
439×279mm |
5820mm |
1780mm |
1705mm |
- Power consumption
- 3-phase 200-220V / 240 / 350 / 380 / 400 / 415 / 440V 50/60Hz
Single-phase 100-120V / 200-240V 50Hz/60Hz
- 3-phase 200-220V / 240 / 350 / 380 / 400 / 415 / 440V 50/60Hz
- Contact us for other specifications and more details.
- The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.
- The TMAR-KC is configured with 2 to 8 heads, the TMAR-VC with 12 heads
