Single-head cylinder type standard model with basic functions

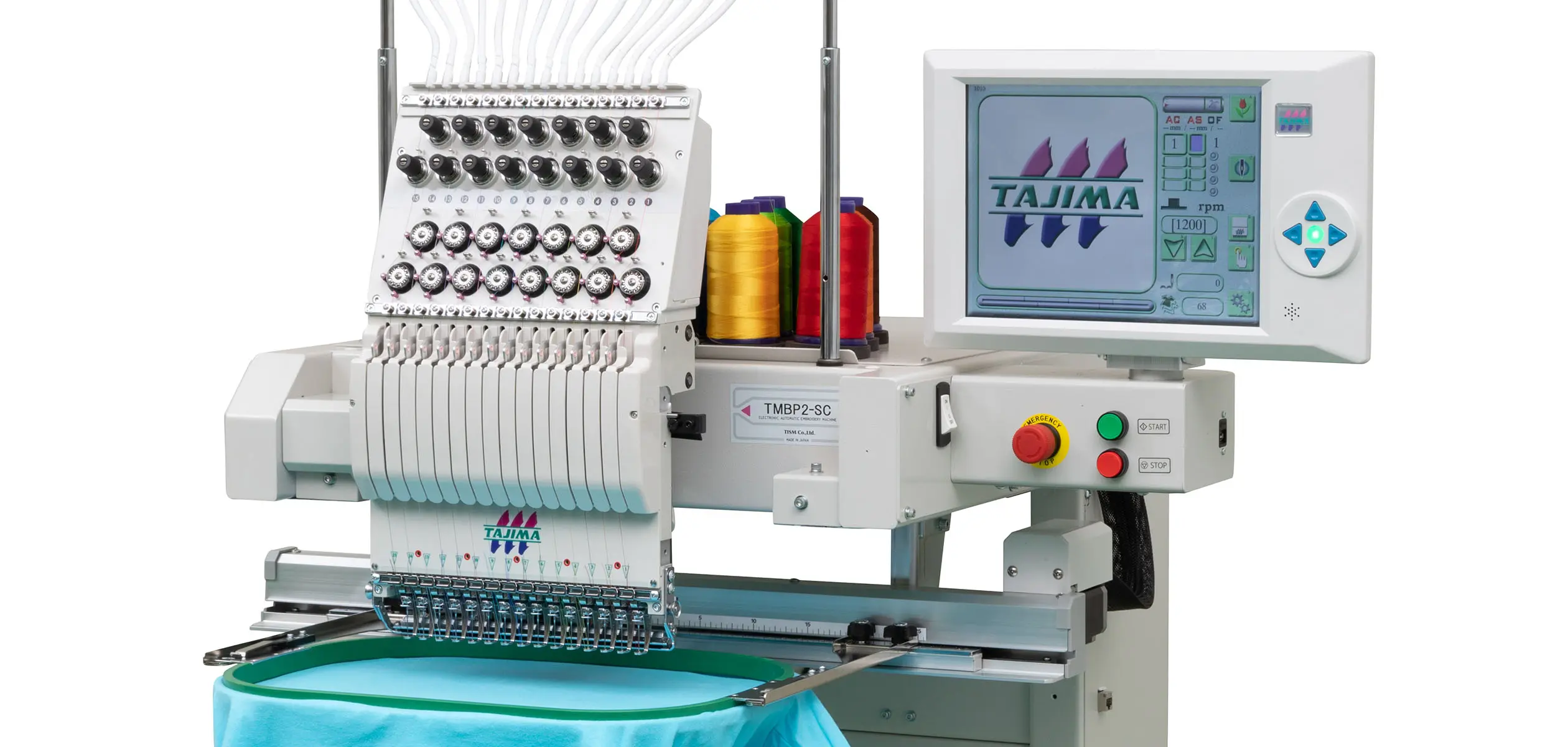

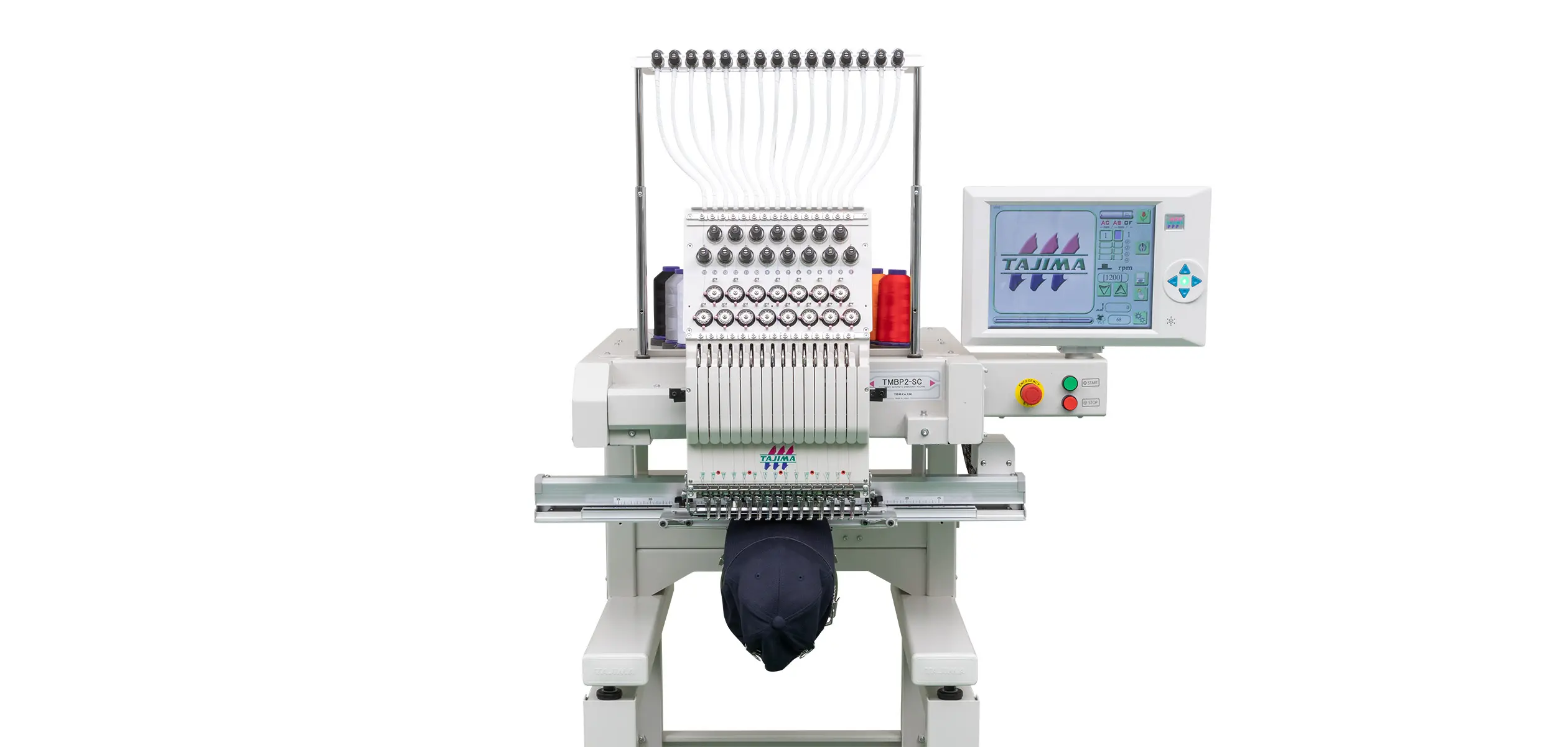

The TMBP2-SC standard single-head cylinder type embroidery machine with basic functions. It handles up to 15 colors and is suitable for name and emblem embroidery on uniforms, hats, socks, bags, etc., and for embroidery processing in stores. Despite its compact body, the machine is equipped with a maximum of 15 colors and a wide embroidery field of 360 mm (14.4inches) (D) x 500 mm (20 inches) (W) to meet a variety of needs.
It is used by leading brands and fashion houses. They yield a beautiful finish, regardless of whether you are using a satin stitch, a running stitch, or a fill stitch. What’s more, a variety of options for sequins and beads enables additional forms of expression.

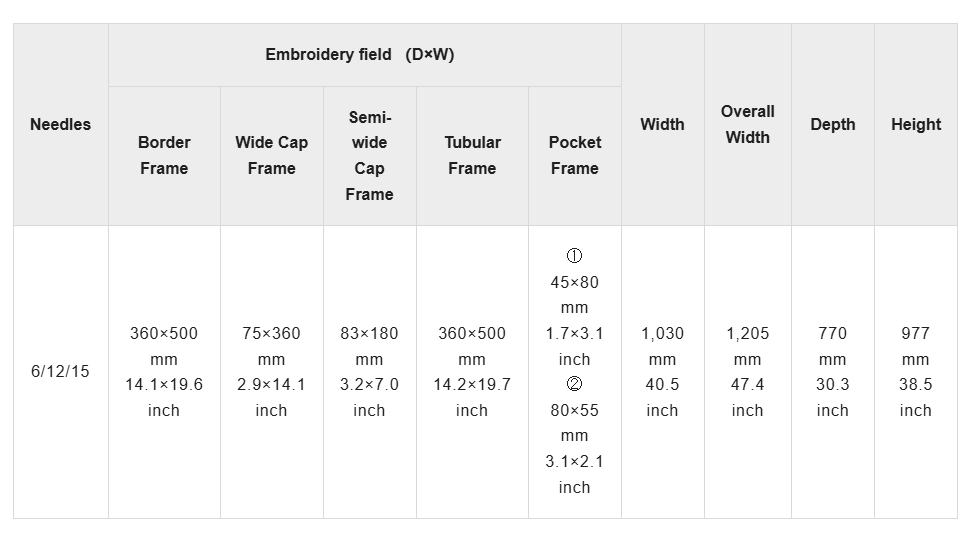

With an embroidery field of 360 mm (14.4inches) (D) x 500 mm (20 inches) (W), it is ideal for large embroidery designs such as large bags and the backs of T-shirts, sweatshirts, etc.

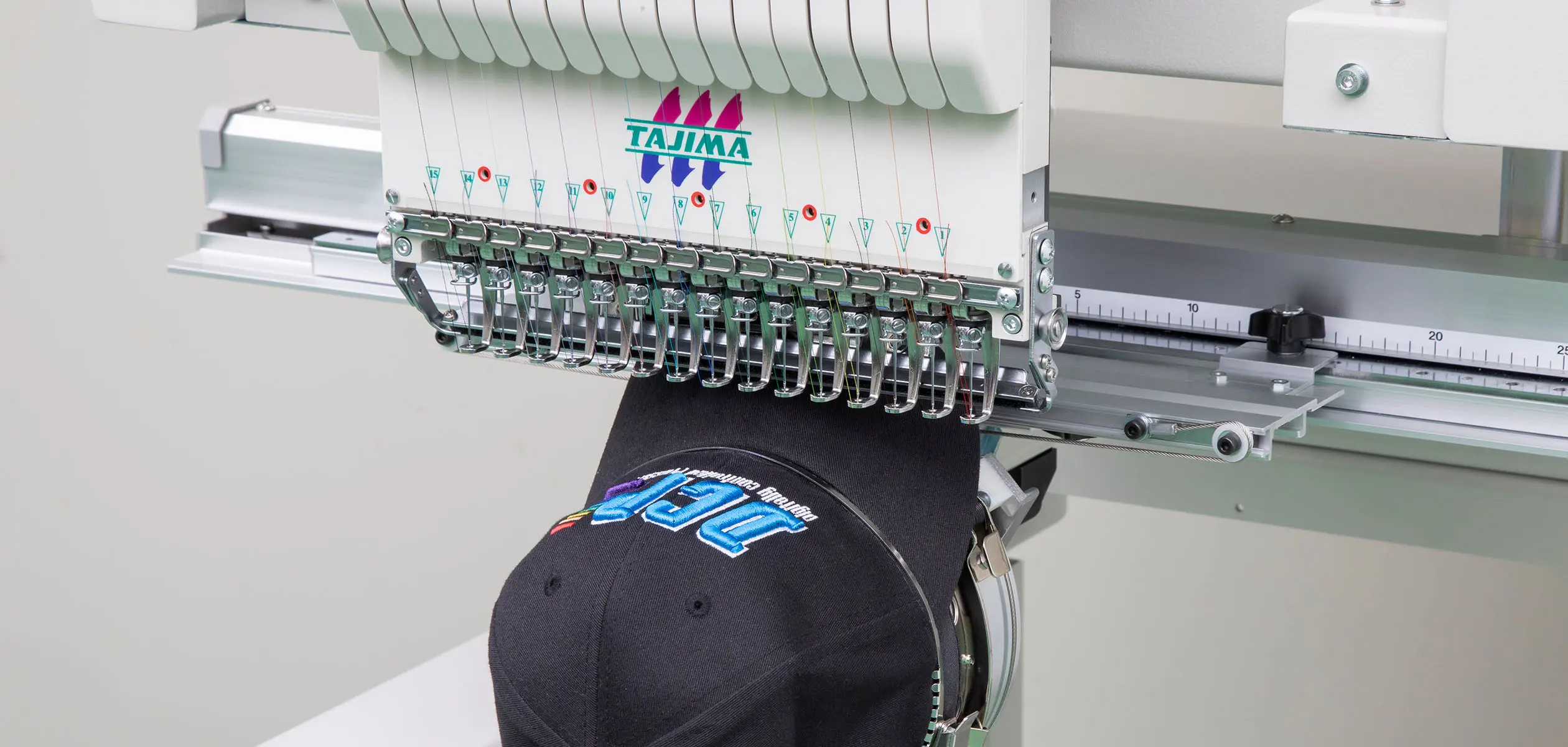

Large-diameter shaft makes it easy for anyone to install the cap frame. Three-point locking between the drive ring and cap frame provides more stable fixation, less needle breakage and pattern misalignment, and operation at a maximum speed of 1,000 rpm
The smaller diameter of the cylinder bed and the smaller bobbin cover allows for easy embroidery on tubular finished products such as sleeves and pockets.
In addition to i-TM and DCP, the machine offers a wide variety of operator-friendly functions and options. This reduces operator workload while ensuring high quality embroidery production and smooth machine operation.
The large 12.1-inch operation panel—one of the largest in the industry—features convenient icons and allows you to switch the language used for operating the machine.
Eliminating the picker makes exchanging bobbins easier. It also provides more stable trimming and a 40% improvement over conventional machines in shortening thread tails on the reverse side of the fabric.
Even if the fabric pattern is slanted in framing, it can be corrected from the operation panel, with no need for repeated attempts to reframe.

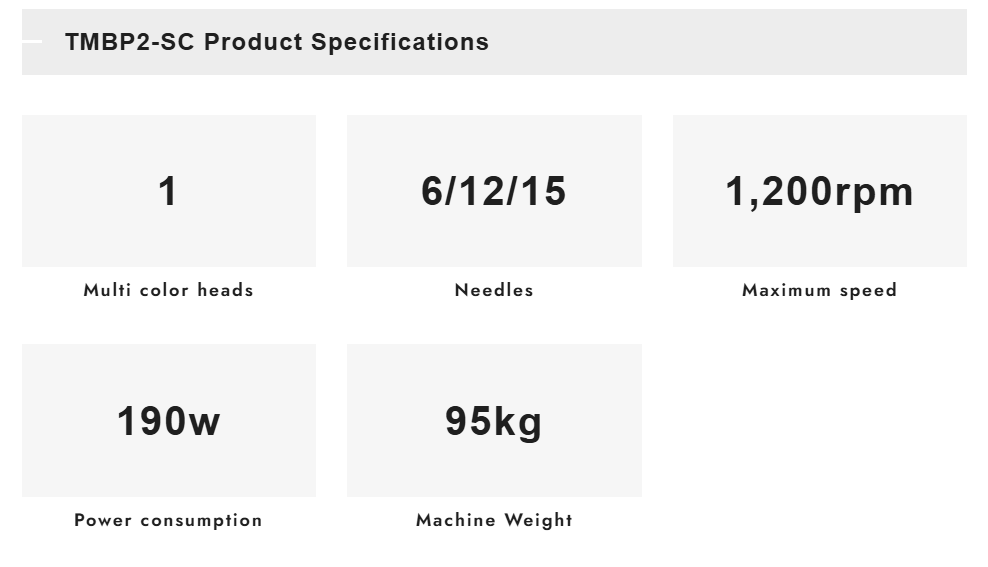

- Power consumption
Single-phase 100-120V / 200-240V 50Hz/60Hz
- Contact us for other specifications and more details.
- The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.
Factory options support a wider variety of embroidery expression and increase production efficiency
Embroidery frame that can be applied to various items
TMBR2-SC
Single-head cylinder type high-end model enables stable embroidery processing on finished products
See Details
TMEZ-SC
Single-head Cylinder Type Flagship Model is equipped with Tajima's latest technologies
See Details
