AI technology “i-TM” and Digitally Controlled Presser foot “DCP”. High quality, stable stitches with "i-TM" and "DCP"
“Even in an environment without skilled operators, it is possible to produce exquisite and beautiful embroidery.” Due to the aging population and changing lifestyles, it is difficult to find skilled professionals in the embroidery industry at production sites. To solve this problem, Tajima developed the AI technology “i-TM” and DCP. In addition, as the personalization business is gaining momentum due to diversifying tastes, embroidery personalization is also attracting attention. Tajima’s technology supports such new business trends. With “i-TM + DCP”, we can provide embroidery processing tailored to your needs easily and with high quality.

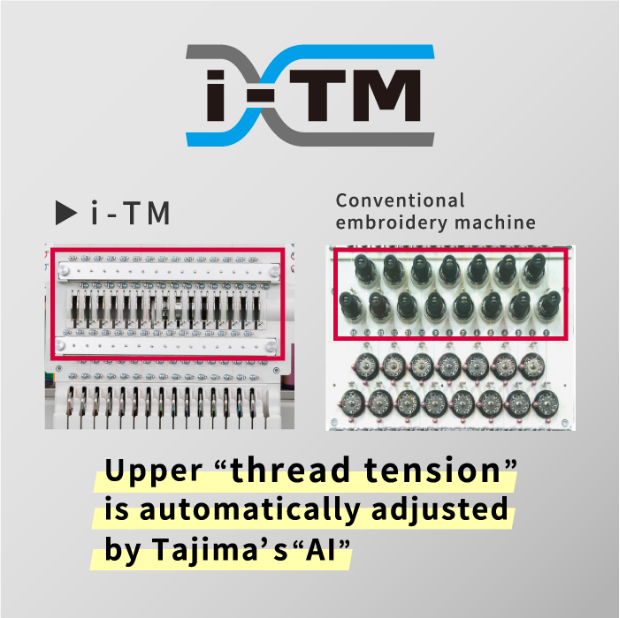

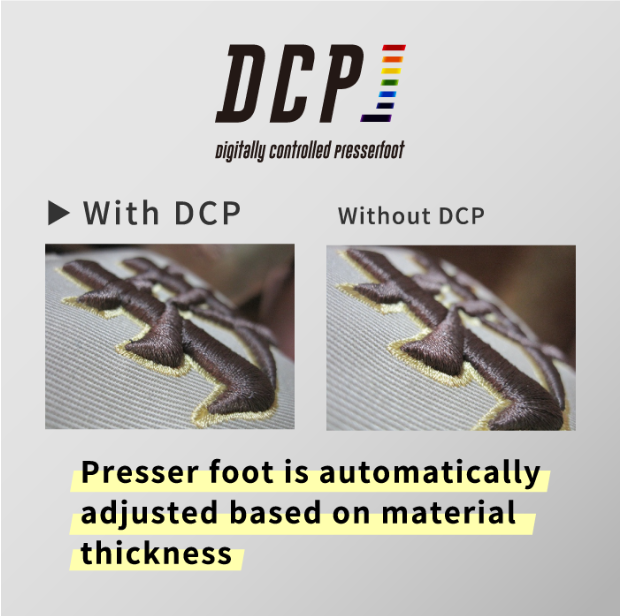

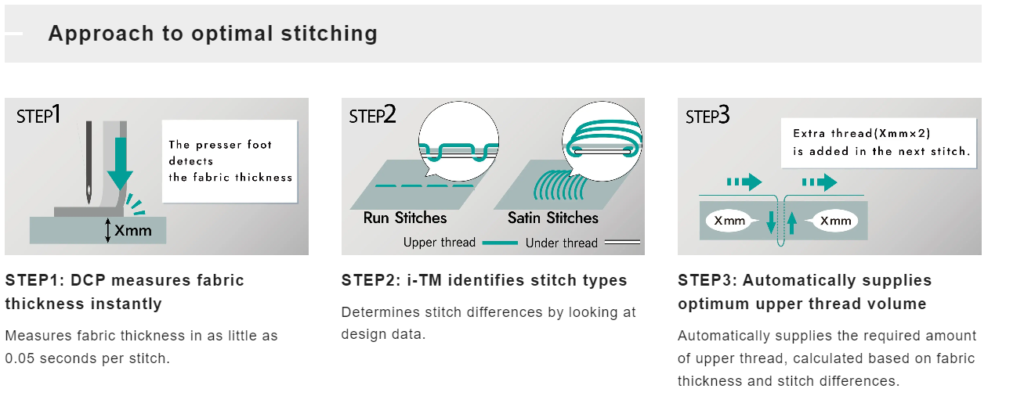

Intelligent Thread Management (i-TM) automatically calculates the upper thread supply by determining the fabric thickness and stitch type measured by DCP. There are no knobs to adjust the thread tension, as is the case with conventional embroidery machines. The Digitally Controlled Presser foot (DCP) measures the thickness of the fabric in as little as 0.05 seconds per stitch and applies the optimum pressing force to reduce fabric fluttering.
Quality indifferent of material and stitch type.
Optimal upper thread supply, unaffected by material or design, results in high quality embroidery at all times. Even materials that are difficult to adjust for, such as thin summer fabrics in particular, can be finished beautifully. The DCP sensor also allows the upper thread volume to be changed even for items that are thicker in one part, such as hoodies. No need to change embroidery machine settings when changing to items such as T-shirts, uniforms, hats,
Operators no longer need to make adjustments according to various conditions such as design, material, temperature, and humidity. With i-TM and DCP, stable production is always possible, regardless of operator skill. In addition, The DCP reduces fabric fluttering, resulting in fewer press marks and thread trimming errors, and thus fewer defective pieces. Manual adjustment for delicate fabrics such as velvet and enameled material reduces the risk of fabric press marks.
Increasing production per operator The time required for trial sewing and adjustment can be reduced, and the speed can be increased with less worry of thread breakage, resulting in an estimated 30% reduction in processing time (compared to conventional machines). Less adjustment work allows multiple embroidery machines to be controlled at the same time, increasing production per operator. Tajima’s quality recognized by leading brands

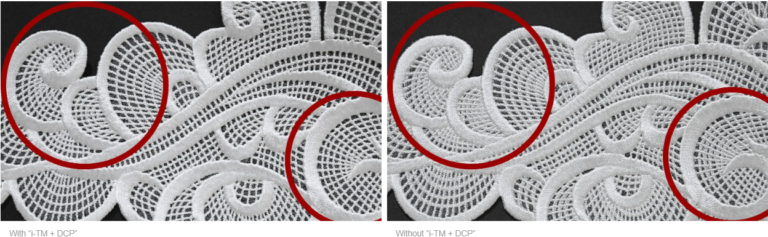

Even on lace embroidery where satin stitches and running stitches are mixed, the amount of thread required for each stitch is automatically calculated and supplied, allowing you to sew with the optimal thread tension. By using voluminous satin stitches and tight running stitches, you can sew neatly without clogging the seams.
Quality indifferent of material and stitch type.

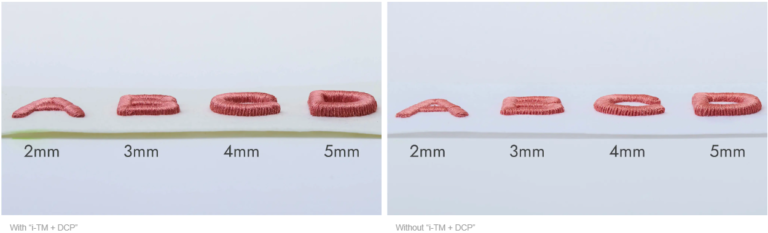

The thickness of the urethane foam is measured for each stitch, and the height of the presser foot and the amount of needle thread supplied are automatically adjusted, allowing you to sew voluminous 3D embroidery without excessively crushing the urethane foam.
