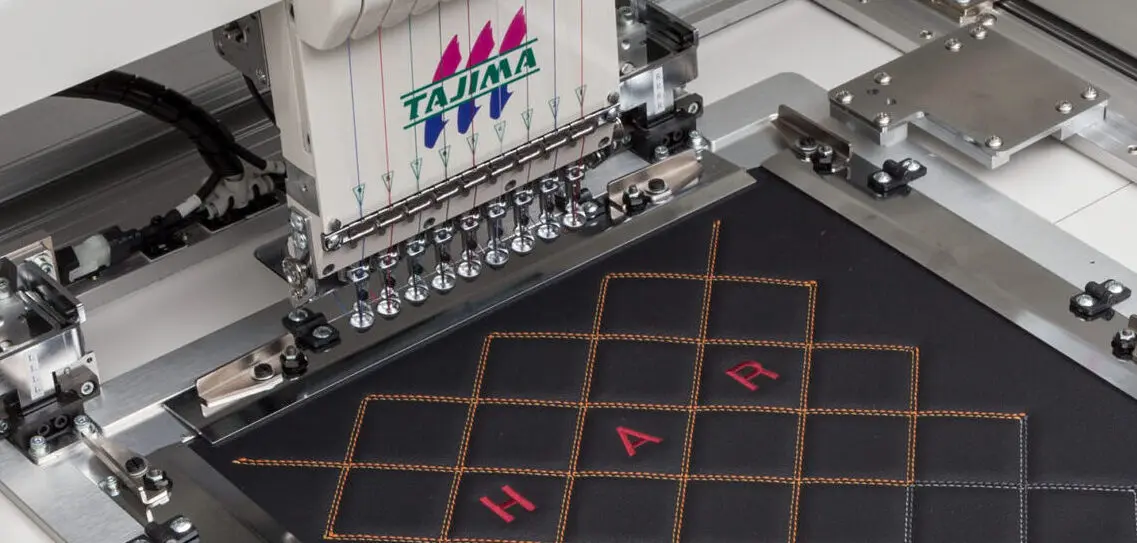

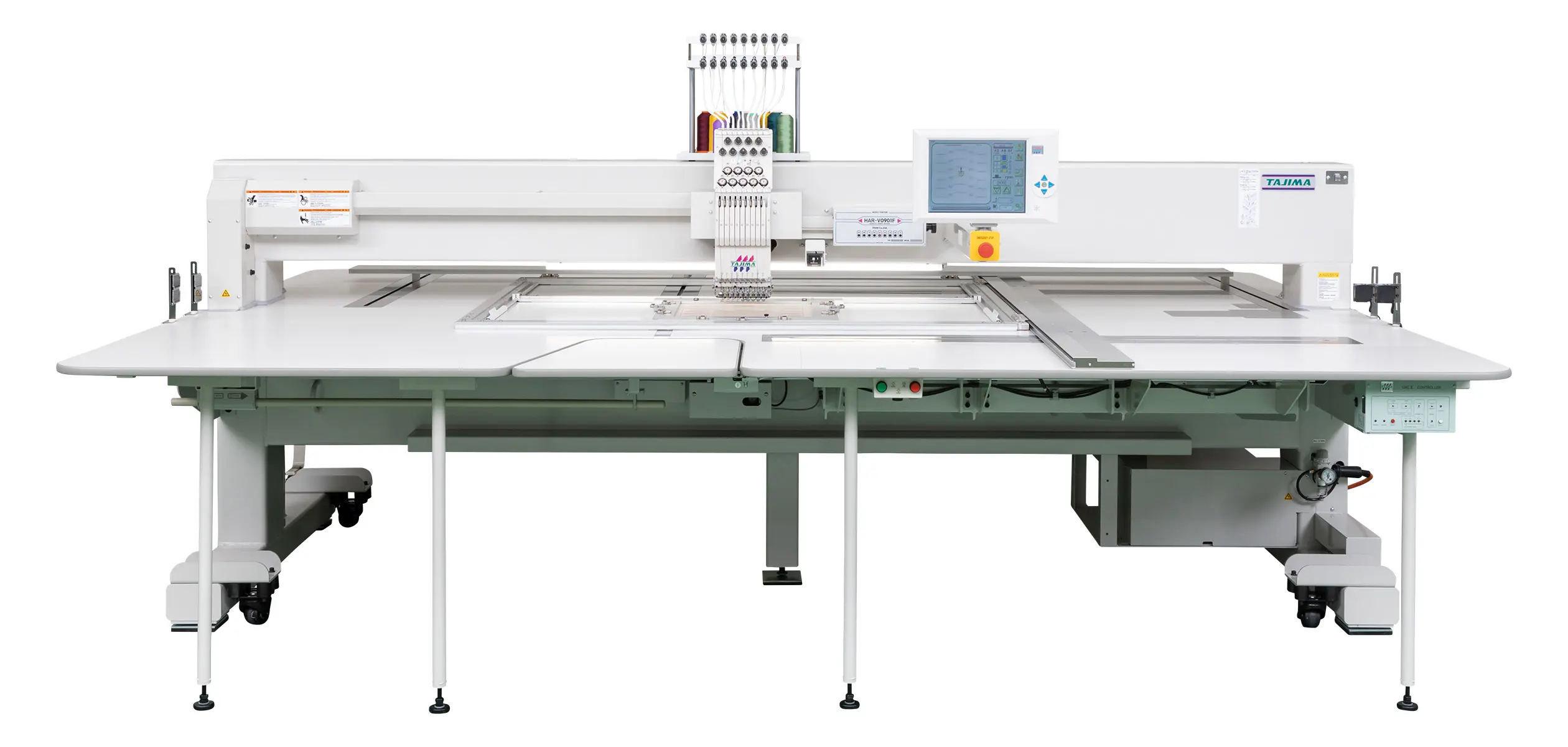

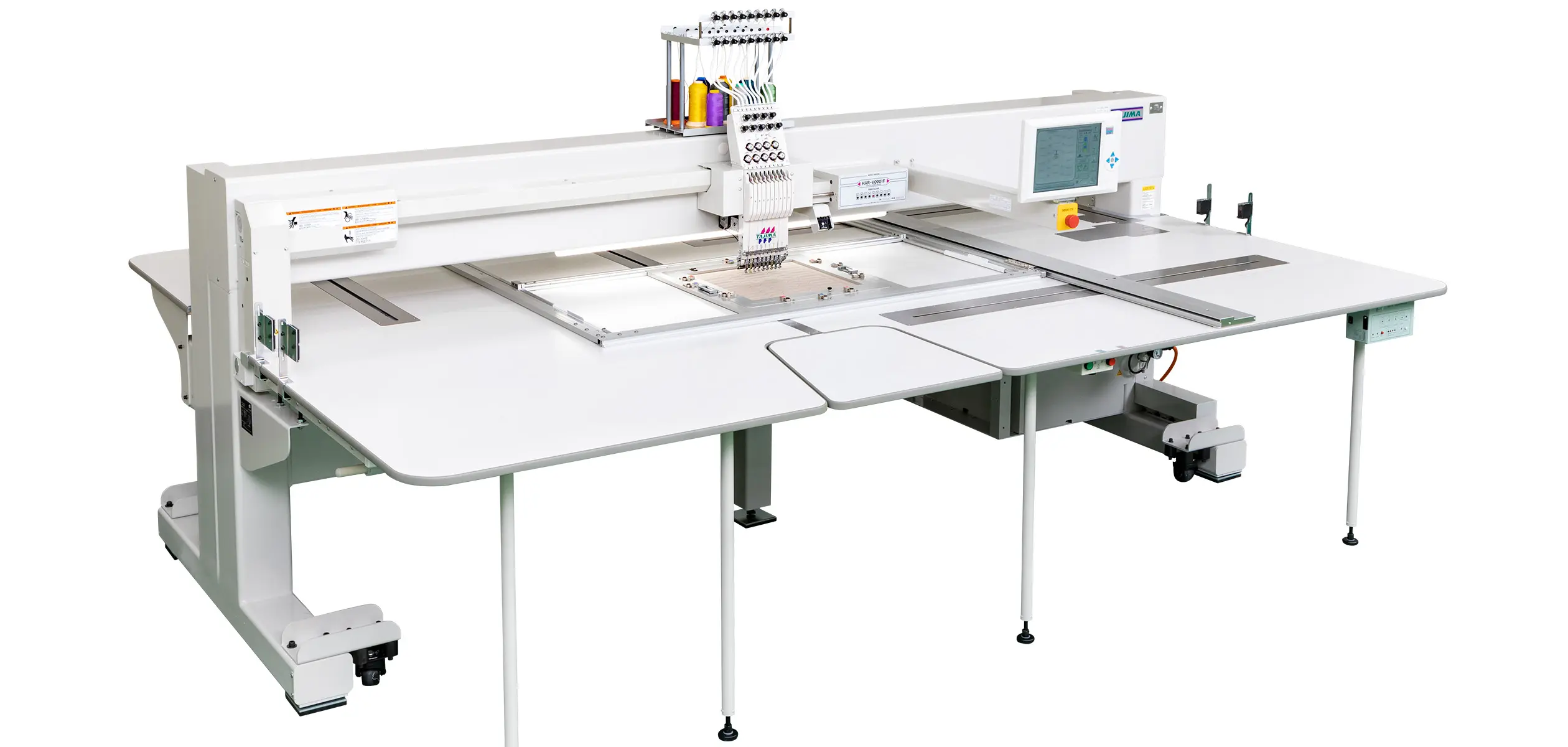

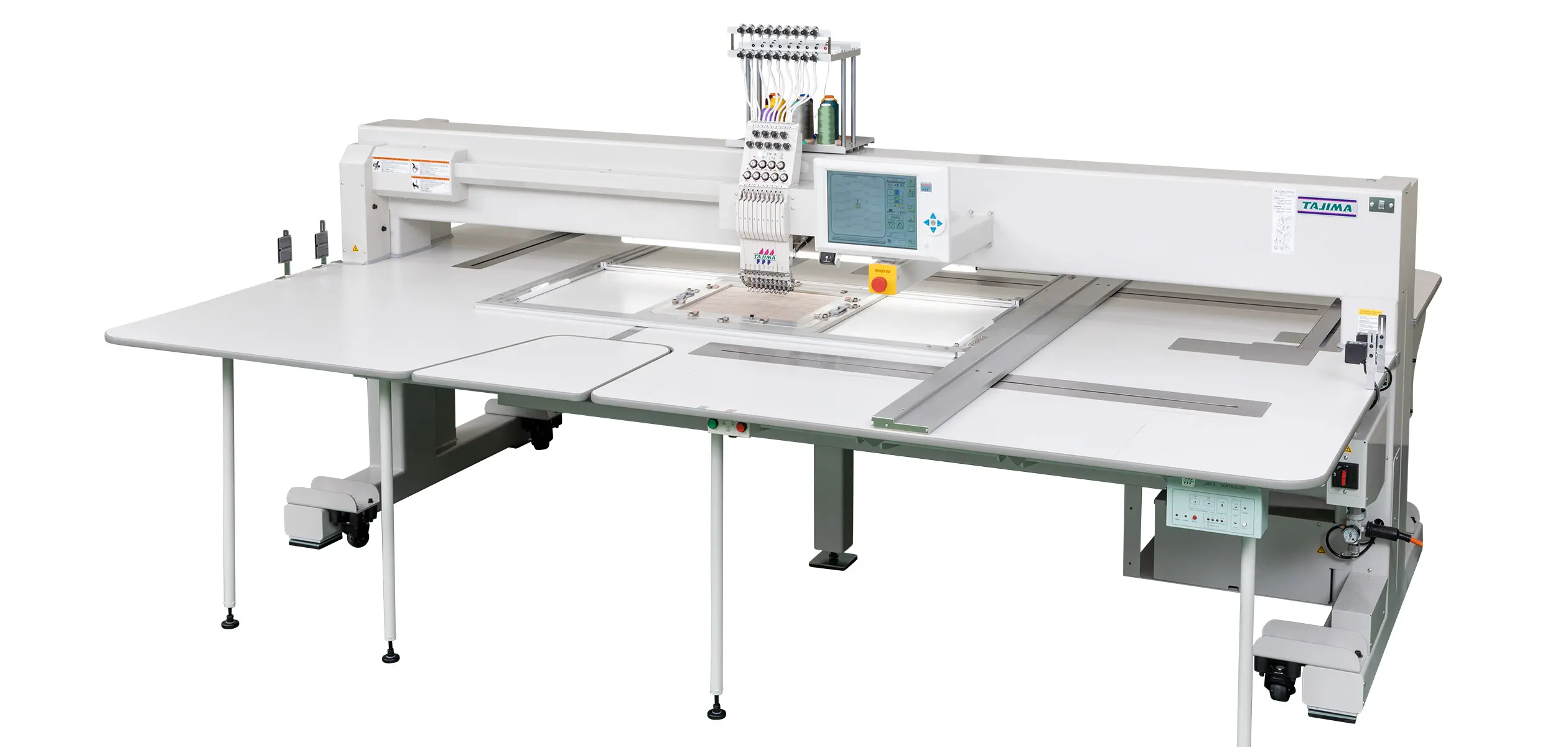

Sew and embroider on one machine.
High-quality multi-color stitching and embroidery on one machine; one head handles up to 9 colors. The machine can be used for seats and interiors of automobiles, cabin cruisers, and private jets as well as for interior design, fashion accessories, and leathercraft.
The “9 colors x 8 heads” system enables the simultaneous production of up to 8 products in a variety of styles. The sewing area is 1,000 mm (40 inches) (D) x 1,200 mm (48 inches) (W), making it possible to handle large products such as car seats and furniture, as well as a wide range of designs.
Combined with PAR, a machine specialized for perforation, it can create high-precision hole punching and quilt lines with minimal downtime.
In quilting where leather and urethane are sewn together, the materials can be sewn with the elastic urethane firmly pressed by setting the presser foot rise to a smaller value. This results in a 3D finish, with no loose threads.
“DG-S” design creation software can convert Illustrator and CAD data into perforation and sewing data, allowing designers to create patterns without limiting their imagination. Furthermore, creating patterns from data significantly reduces the cost and time that would be required for conventional mold manufacturing. It can also be adapted to small-lot production, where greater variety is required. *DG-S design creation software is optional. *Creation of embroidery data requires separate embroidery data software.
The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.
Gauge Frame
This eliminates any need to change the material during perforation, sewing, or embroidery, allaying concerns about misalignment.
Auto Bobbin Checker (ABC)
This feature detects if the remaining amount of bobbin thread is appropriate, preventing defects due to unexpected bobbin thread runout.
Bobbin Changer
Up to three bobbins can be pre-staged for replacement. This reduces the work in changing bobbins making extended embroidery operations more efficient.
Barcode Reader
This function confirms that the design data coincides with the special gauge holding the fabric to prevent human error.
Beam Sensor
To help ensure safety, this sensor pauses the machine’s operation when an operator approaches a head while the machine is running.
Signal Tower
This allows machine operation to be detected even from a remote location.
Exclusive Presser Foot for Sewing Heads
The presser foot can be selected from 3 types according to the material type and the sewing method.
Thread Loosening Device
A device that reduces errors at the start of embroidery by loosening the tension on the upper thread during thread cut and stabilizing the cut surface.
PAR
Specialized for perforation, this industrial machine achieves unprecedented beauty in dot hole design
