TFMX-C series - Tajima Japan

1501/1201/901/601

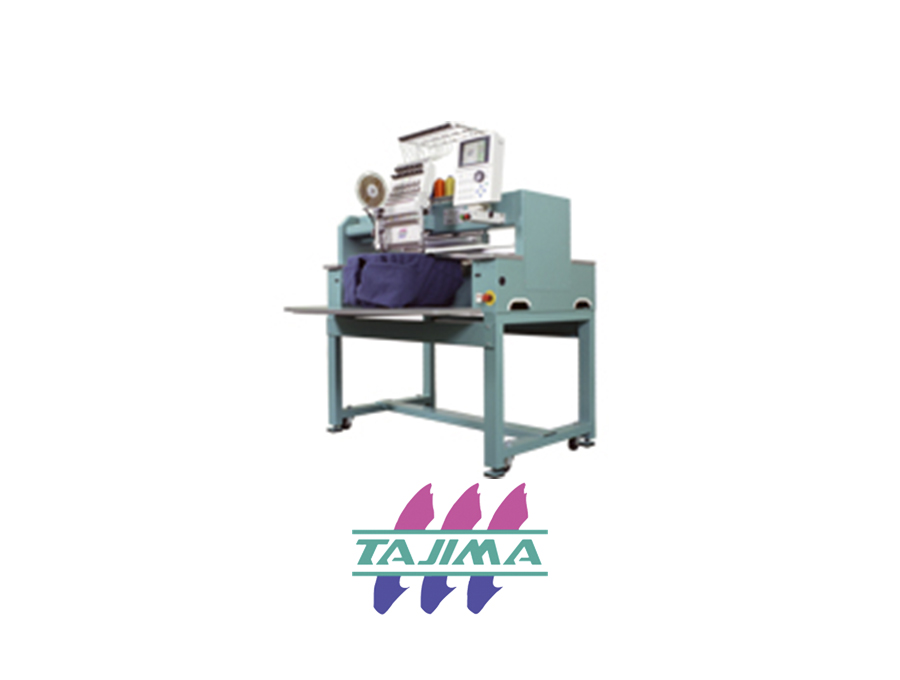

TFMX-C series
Diversified applications are available to a wide range and variety of products, using a wealth of optional devices.
The best suited model for your shop business or small lot production.

Stitches : 5598 sts | Color : 4 | Size(mm) : 41.9×80.6 | Technique : Pocket Frame

Function

User-Friendly, Quieter Operation
Latest noise reduction developments help create a quiet and pleasant working environment for operators.

Memory
The standard memory is 2,000,000 stitches and able to store a Max. of 200 designs.

Condition Memory
Stitch conditions can be memorized together with embroidery data. The saved stitch conditions are applicable to job repeat. or other machines.

cale Up / Down, Rotate
You can scale your designs down to 50% or up to 200% in increments of 1%, and rotate in 1-degree increments.

Automatic Repeat
A design can be automatically repeated up to 99 times both vertically and horizontally.

Design Editing
Modify, insert or delete your embroidery design data stitch by stitch.

Satin Stitch Reduction and Expansion
Increase or decrease actual stitch length according to the stitch length in a design.

Cleanup function
A very helpful function to automatically remove small stitches to prevent thread breakage effectively

Frame Back / Forward
Frame Back / Forward is available in units of stitches, color change or designated stitch count.

Trace Function
Check whether a design will fit in a frame before you sew.

Origin Return
The frame can be either manually or automatically returned to the design starting point (while the machine is stopped), even if the end point is different from the starting point.

Productivity
Production efficiency has been improved by decreasing downtime caused by color changes, thread trimming etc.

Automatic Offset / Manual Offset
Facilitates applique fabric placement and frame changing.

Automatic Upper / Under Tread Trimming Device <ATH>
Automatically operates by commands in the design data.

Power Failure Control Measures
You can continue to operate the machine after power failure during embroidery without being annoyed by misproduction due to design displacement.

Factory Options

Jumbo Rotary Hook
The special jumbo size rotary hooks and stitching mechanism of our own design have enabled various thickness of upper threads from thin to thick to be used readily. Due to expanded bobbin capacity (twice as much as the small hook), bobbin changing tasks have been drastically decreased, increasing productivity.

Sequin Device IV
Wide range of sequins from small to large sizes or in various shapes like noncircular or eccentric type are applicable for creation of you designs as needed, depending on your applications.

→ more detail

Sequin Device III Twin Type <PAT>
It is now possible to embroider a max. of 4 different sizes, shapes and colors on each head. 2 kinds of sequins on one side can be interchanged and embroidered at high speeds as desired. This next-generation Sequin device permits more design options and improves production efficiency. Installable in a compact design even to the machines with small head intervals.

→ more detail

Position Marker
Points out a needle hole position, hidden on a cloth, by light it up with a LED beam to align embroidery start position. You can check the needed position anytime.

*The red point is a LED beam.

Auto Clamp Frame
Embroidery on wide range of materials from roll fabric to finished goods is available without frame exchange.

Option

High-Speed Cording Device (KB-2M)
New variations of looping or cording embroidery
can be added to a design by switching between 2 kinds of attachments.


Boring Device II
A special knife bores a hole in a fabric and then a needle and thread sew open the hole. The size of the hole is adjustable and the shape can be created through the process of digitizing to meet your desires. This device is applicable to all normal embroidery heads and easily increases the value of embroidered products.
(without applications with cap frames)

Emb. Lame Attachment
Lame filament yarn can be stitched steadily without
being twisted to create your original embroidery.

Wide Cap Frame <PAT>
Embroidery on the circumference of caps is possible up to 270 degrees. 2 types
(Adult or Children-use) are available for wide cap frames.

Cylindrical Frame <PAT>
A wide range of embroidery is applicable to cylinder-shaped products like socks,
gloves, wristbands and golf head covers.

Border Frame
Opens the way to flat embroidery.

Pocket Frame
An embroidery frame to apply embroidery on small pockets.
Best suited for small size embroidery such as monogramming.
