5m Fixation Calender

In the steps below you see the ideal working sequence. Once the protection paper for the drum has been threaded, feeding the protection paper for the belt and of course the textile is becoming so easy. The wide opening to the drum creates a good accessible machine, whilst the drum is far enough away to prevent danger to the operator. Once fed into the machine, paper and textile are automatically transported to the back of the machine, where it can be winded ate proper working height.

Step 1 - Protection paper rewind moved in front position for easy access.

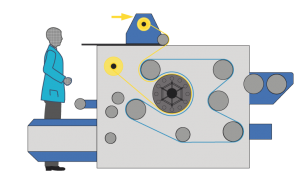

Step 2 - Protection paper rewind retracted for automatic feed through of textile.

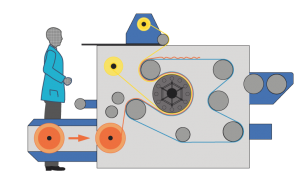

Step 3 - Inserting protection paper for the belt using a retractable drawer

Step 4 - Inserting textile with automatic feed through to the back.

Step 5 - All set. Ready to go!

Features
These features are included:

Retractable drawer
Pneumatic tension settings
Incorporated textile feed through

Options
The machine can be delivered with:

Exhaust hood
Compressor

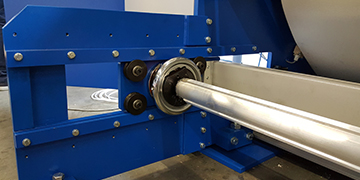

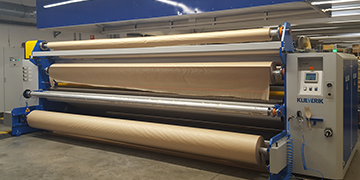

GTC 111-5400 calender on site                                                       Retractable drawer for Protection paper on the GTC 111-5400
